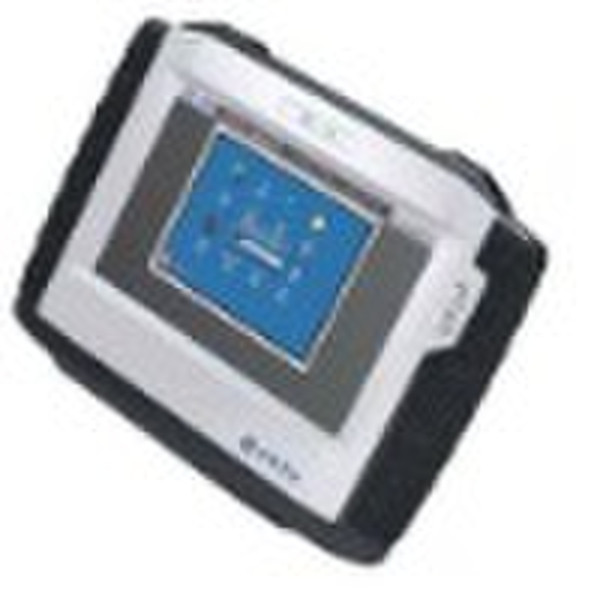

XDSL Tester

Introduction: xDSL tester is designed for badly needed of ADSL2+ line test nowadays,it is compatible with ADSL/ADSL2/READSL. DS-590 can not only test physical parameters of line, helping user to ensure whether register the xDSL service ,but also can evaluate the service quality by transmission parameters. At the same time, DS-590 can use its imbedded Modem to finish PPPoE dialing, IE browser website by connecting with user cable. It simulates the PC+Modem way to ensure the connection between user and ISP. DS-590 goes on some network layer test after the success of PPPoE dialing, which includes Ping, Ipconfig, Router and Tracert test. Besides these, DS-590 can also replace user’s PC to test the problem of broadband IP line and Modem. This device adapts 320?240 real color TFT liquid touching screen. Windows interface, easy to operate and result is easy to see. It is able to satisfy all types of xDSL line install and fix Note: DS591= DS590 + WLAN test DS592= DS590+CDMA module + GPS function Function & Feature 1. Complied standard ITU G.994.1 ITU G.992.5 ITU G.992.5 Annex L compatible with G.DMT G.lite T1.413 issue 2 2. Transmission parameters test of ADSL line ADSL2+ line’s attenuation 0 63.5dB ADSL2+ line’s noise margin 0 32dB ADSL2+ line’s upstream rate 0 1.2Mbps ADSL2+ line’s downstream rate 0 24Mbps Modulated bit number of DMT sub-channel 0 15 and freq value of each channel ADSL2+ line’s error bit number(CRC,HEC,FEC,NCD,OCD) ADSL2+ line’s local output power ADSL2+ line’s other state as signal loss,connection close 3. WAN test Able to simulate PC+ Modem PPPoE dialing, check network connection IE browser test, able to connect with network anywhere of user side, providing connection state to locate where the problem is Work on Ping,Ipconfig, Tracert, Route network level test 4. LAN test Simulate as user’s PC to carry on PPPoE dialing test of LAN or broadband IP IE surfing online test LAN network level test LAN internal PC search 5. DMM test Test DC/AC |voltage 0 400V Loop resistance 0 20000Ω Capacitance 0 1000nF Insulation resistance 0 100MΩ 6. Wireless module function (only DS-592) With imbedded CDMA module, user can log on operator’s customer service distribution system and get the information of maintenance man,improving efficiency 7. Office function under WINCE (only DS-592) Has function of office under WINCE, user can operate Word, Excel, and PPT 8. GPS function (only DS-592) Adapt the third generation positioning chip with fast speed Other features 320*240 TFT real color liquid touching screen, Windows interface 20M bites of memory storage for recording, support USB disk and LAN data exchange Support disk, mouse and keyboard with USB interface, testing software can be updated from USB disk or LAN Adapt imbedded operation system, powerful document management Size 200×180×50mm Battery capacity exceeds 4400mAH, continuously using more than 6 hours
