| Power |
Electronic |
| Usage |
Universal Testing Machine |
| Place of Origin |
Chongqing China (Mainland) |
| Brand Name |
Dodem |
| Model Number |
DT-651 |

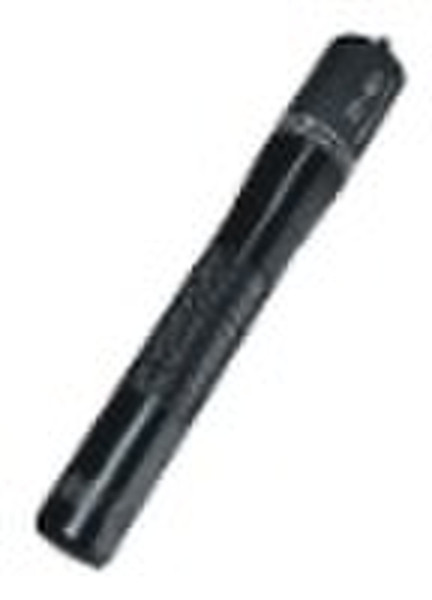

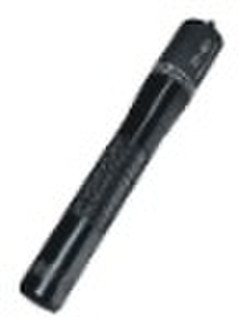

Instruction DT-650 Series Fiber Optic Cable Fault Locator is a 650nm red laser source which uniquely designed for fiber optic cable fault location. It can test the fiber optic cable and connector. When the tested fiber optic cable has a breakpoint, the red laser will scatter out from it, user can ensure the breakpoint. It is suit for single and multi mode fiber optic cable. Feature Locate the fault of naked fiber optic cable and connector. Constant output power, adopt unique laser driving circuit 650nm red laser, lighter, stronger penetrability, able to penetrate Avoid OTDR blind zone Fiber optic cable tracking, locate the fault place Continuous and impulse two modes of radiation, impulse modulation frequency: 2HZ The head of laser source is drop proof, more safe. Model DT-651DT-652DT-653DT-654Output wave length650nmOutput power1mW10mW>1mW>10mWBlink functionYesNoDynamic distance3 5 km8 10 km3 5 km8 10 kmModulate frequency2HZAdaptorUniversal adaptorAuto power offNo10 minutesBattery rechargeNoYesWorking time40 hour 20 hour >12 hourStorage temperature-20°C +70°CWork temperature -10°C +60°CHumidity < 95%Power supply BatterySize 160mm x 26.5mm140mm x 62mm x 31mmWeight 150g200g
